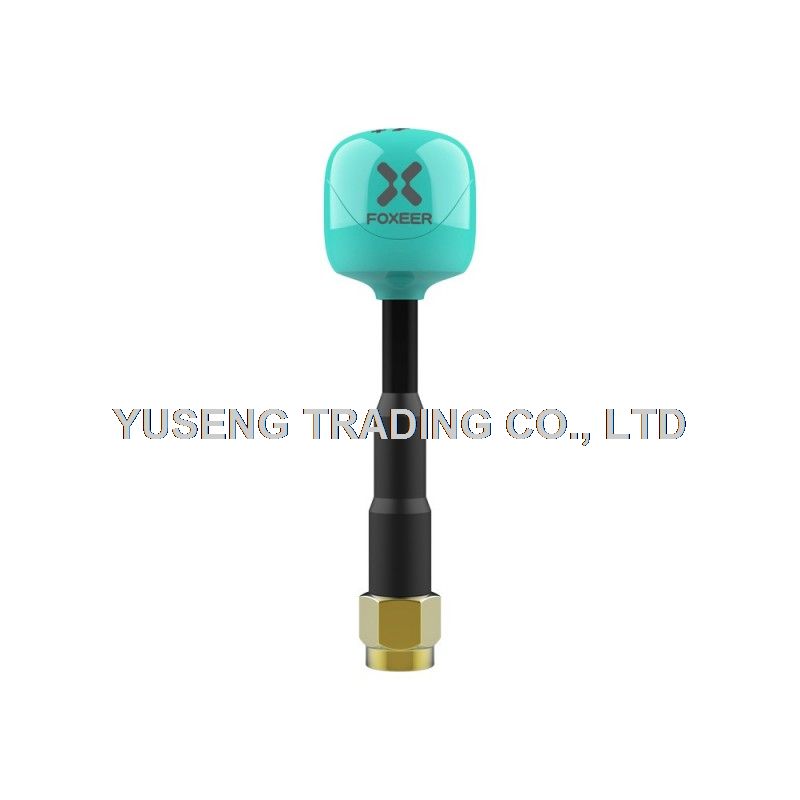

Foxeer Lollipop 4Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna
Quick Overview
Center Frequency 5.75GHz
Gain 2.6dBi
Axial Ratio Close to 1
Band Width 5.5G~6GHz
Radiation Efficiency 98%
SWR 1.07 at Center Frequency
Polarization RHCP/LHCP
Case Material PC+ABS
- Detailed description

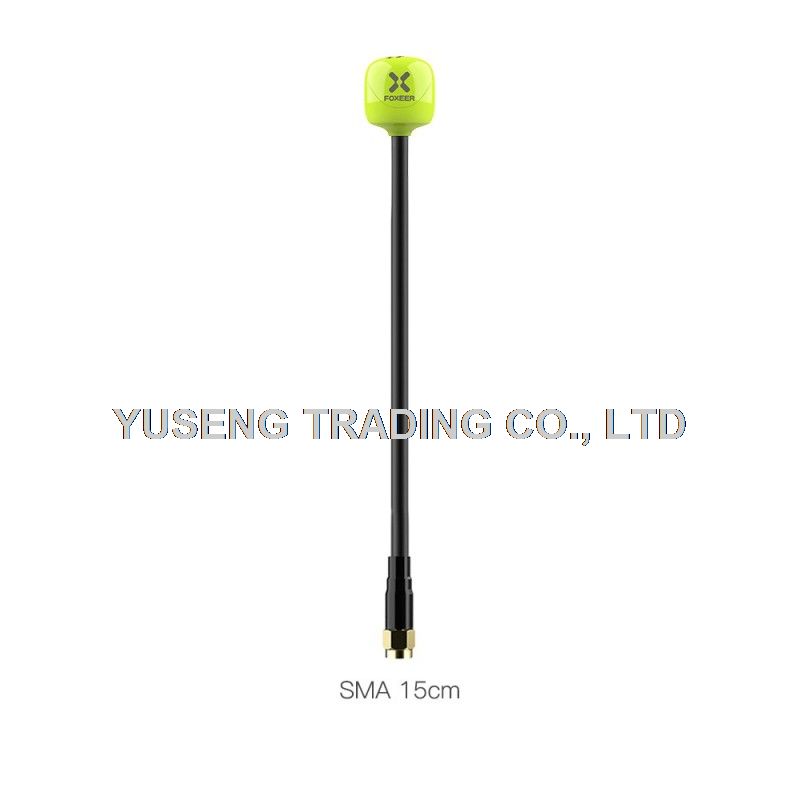

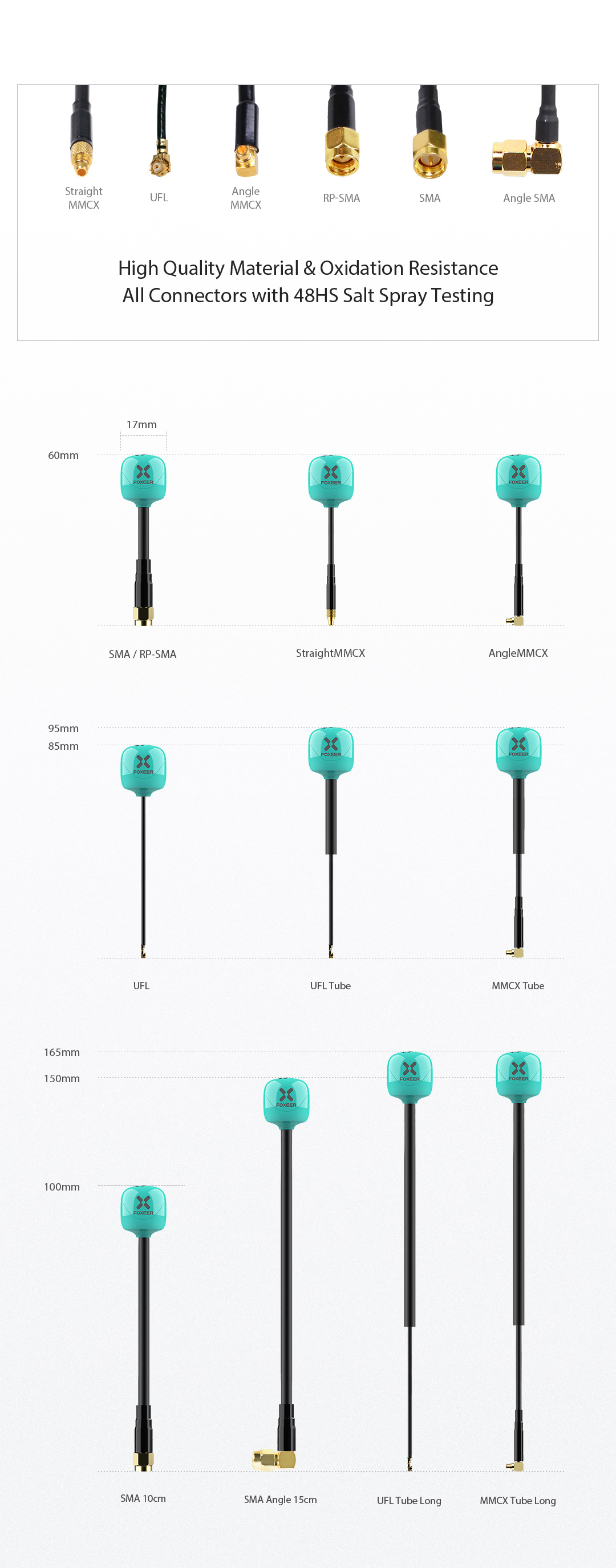

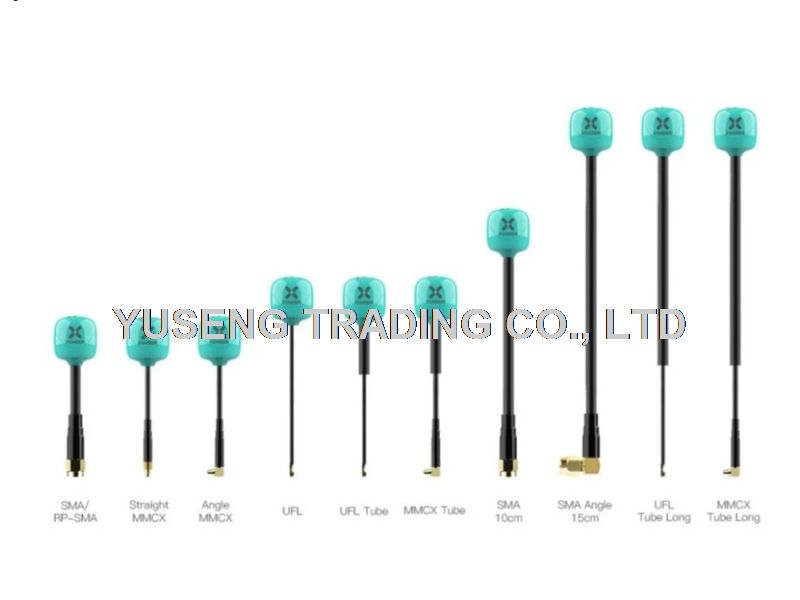

Center Frequency 5.75GHz Gain 2.6dBi Axial Ratio Close to 1 Band Width 5.5G~6GHz Radiation Efficiency 98% SWR 1.07 at Center Frequency Polarization RHCP/LHCP Case Material PC+ABS Weight SMA/RPSMA: 7.8g Straight MMCX: 4.4g Angle MMCX: 4.5g SMA-10CM: 9.7g Angle SMA-15CM: 13.9g UFL : 2.8g UFL Tube Short: 2.9g UFL Tube Long: 3.8g Angle MMCX Tube Short: 4.8g Angle MMCX Tube Long: 6.8g Connector & Length SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm UFL: Φ11*85mm UFL Tube Short/ Angle MMCX Tube Short: Φ11*95mm SMA-10CM: Φ11*100mm SMA 15CM Angle: Φ11*150mm UFL Tube Long/ Angle MMCX Tube Long: Φ11*165mm
