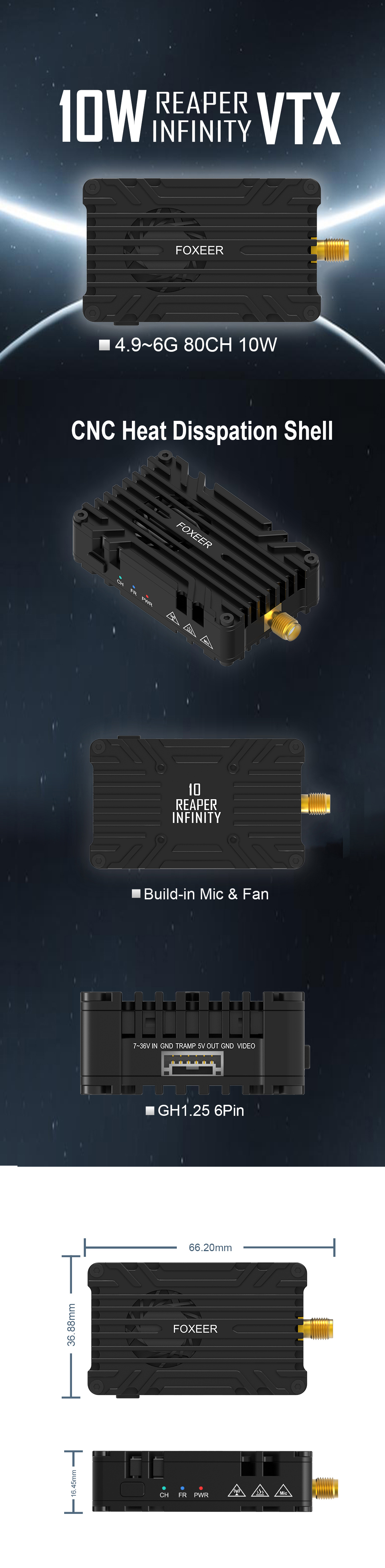

Foxeer 4.9G~6G Reaper Infinity 10W 80CH VTx
Quick Overview
Name Reaper Infinity 10W
Input Voltage 9~36V
Output Voltage 5V
Channels 80CH
Power 1W/2.5W/5W/7.5W/10W
Pit Double click to enter
Weight 48g
Mounting Hole 20*20mm M2 with 2.5mm depth
Size 66*37*16mm
Connector SMA
Cable Connector GH1.25 6P
Consumption 10V/3.3A & 20V/1.5A; 10W
Package Include 1 x VTx, 1 x silicon cable
- Detailed description
PIT On/Off:
Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.
Note:If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.
