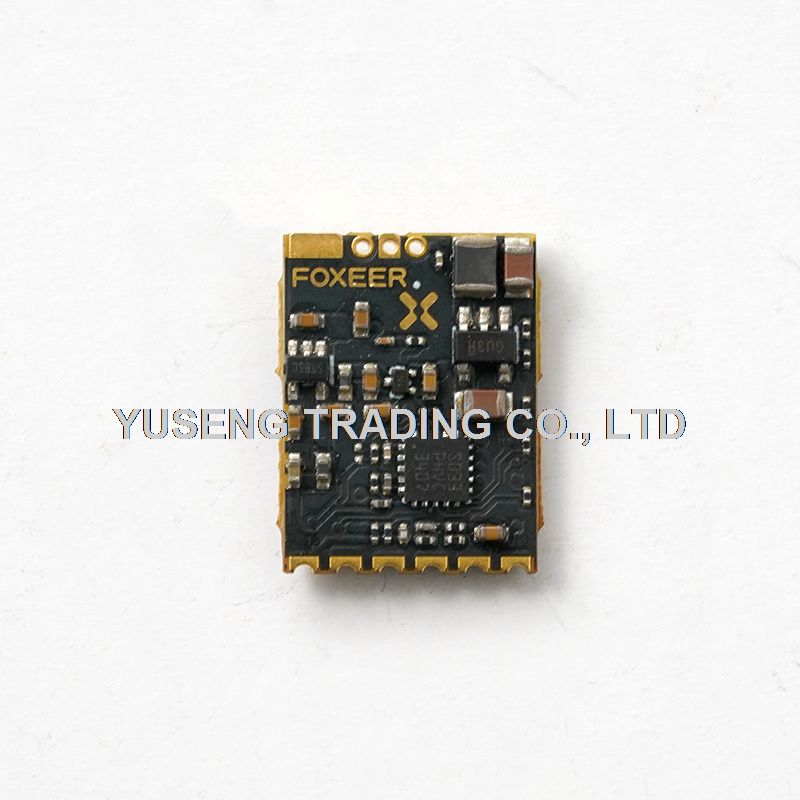

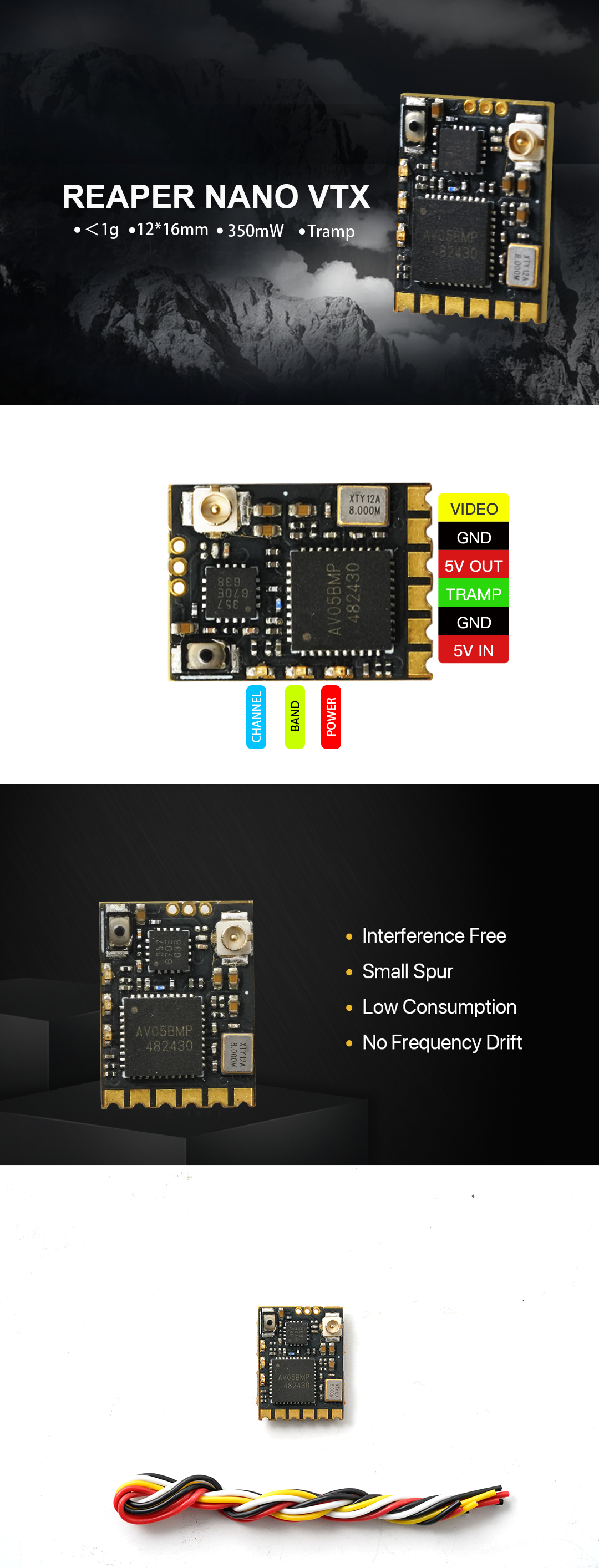

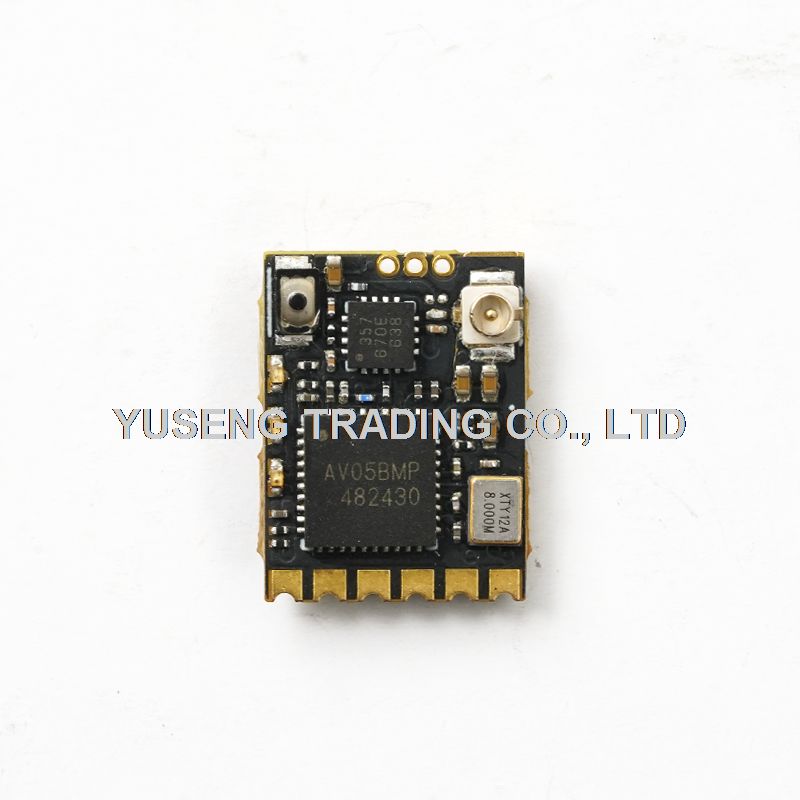

Foxeer Reaper Nano V2 VTx 5.8G 72CH 350mW Tramp

Unlock the frequencies and power levels

Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.

PIT Mode On/Off

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.
